How Diameter and Length Impact Pneumatic Tool Performance
Sizing Your Hoses Correctly: Why Diameter and Length Matter More Than You Think for Tool Performance
Ever plugged in a high-end impact wrench only to have it “stutter” or struggle with a stubborn bolt? Before blaming the tool or the compressor, it’s worth taking a closer look at the connection between them—the air hose.
In pneumatic systems, the hose is not just a simple tube. It acts as a pressure and airflow conductor. When it is undersized or too long, it becomes one of the most common hidden causes of poor tool performance. In many cases, it is the difference between a tool performing at full torque or barely getting the job done.

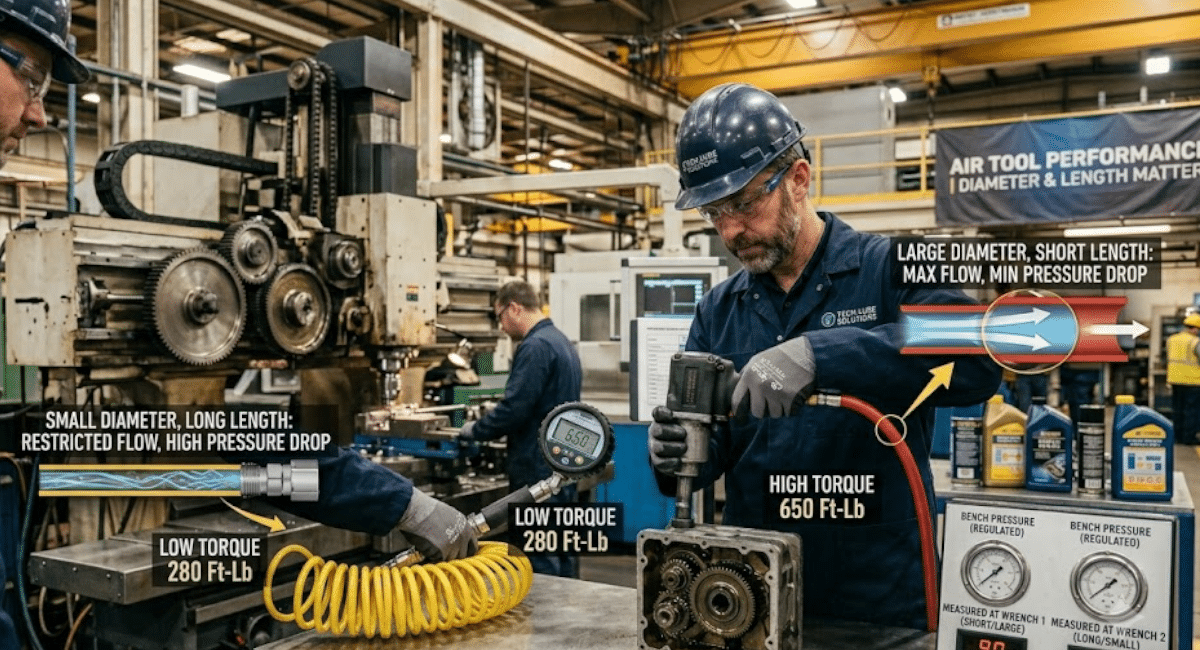

1. The Diameter Dilemma: Flow vs. Restriction
Air tools require more than just pressure (PSI)—they require consistent airflow (CFM). The internal diameter of your hose directly determines how much air can reach your tool in real time.
If the hose is too small, it restricts flow and creates a bottleneck. This is why hose sizing is just as important as compressor capacity when it comes to tool performance.
Common Hose Sizes and Applications
- 1/4″ ID: Best for light-duty applications such as brad nailers, staplers, and tire inflation.
- 3/8″ ID: The most versatile option for general shop use, including impact wrenches, grinders, and framing nailers.
- 1/2″ ID: Designed for high-demand industrial tools that require sustained airflow and high torque output.
The “Choke” Effect
When a high-demand tool is connected to a small-diameter hose, the system can no longer maintain airflow under load. Even if the compressor shows adequate PSI at idle, pressure collapses when the trigger is pulled.
This happens because the hose cannot deliver air quickly enough to keep up with demand, effectively starving the tool during operation.
2. The Length Penalty: Friction Loss Over Distance
Every foot of air hose introduces resistance. As compressed air travels through the line, it experiences friction against the inner wall of the hose, which results in pressure loss over distance.
Short vs. Long Hose Runs
- Short hoses (under 25 ft): Minimal pressure loss and ideal for bench work or stationary tasks.
- Medium hoses (25–50 ft): Noticeable but manageable pressure drop depending on airflow demand.
- Long hoses (50+ ft): Significant pressure reduction that can impact tool performance.
The “Daisy Chain” Problem
Connecting multiple hoses together may seem convenient, but it compounds pressure loss. A 150-foot combined hose length can dramatically reduce effective pressure at the tool, even if the compressor tank is properly pressurized.
In real-world applications, a system rated at 90 PSI may deliver significantly less pressure at the tool under load when excessive hose length is introduced.
3. Understanding Pressure Drop in Real Applications
Pressure drop is the difference between compressor outlet pressure and the actual working pressure at the tool while in use. This is where hose size and length directly affect performance.
| Hose Diameter | Length | Pressure Drop (at 20 CFM) |
|---|---|---|
| 1/4″ | 50 ft | High (not recommended for high-demand tools) |
| 3/8″ | 50 ft | Moderate (acceptable for most shop tools) |
| 1/2″ | 50 ft | Low (best for heavy-duty applications) |
Pro Tip: If your work area is far from the compressor, it is often better to install fixed piping (such as aluminum or copper lines) and then use a shorter 15–25 ft whip hose at the point of use. This helps reduce overall pressure loss and improves efficiency.
4. How to Choose the Right Hose Setup
Optimizing hose performance is simple when you follow a few key guidelines.
Check the Tool’s Air Requirements
Always refer to the manufacturer’s specifications for required CFM. As a general rule, tools requiring more than 5 CFM should be paired with a 3/8″ hose or larger.
Keep Hose Length as Short as Practical
Use the shortest hose length that your workspace allows. Excess hose length adds resistance, reduces efficiency, and increases strain on your system.
Match Your Fittings to Your Hose Size
Even a properly sized hose can be restricted by undersized fittings. A 3/8″ hose paired with 1/4″ couplers can create a bottleneck that negates the benefits of the larger hose.
For best performance, ensure that couplers, plugs, and quick-connect fittings are rated to match or exceed your hose diameter and airflow requirements.
Summary: Your Hose Controls Your Tool Performance
Your air tool is only as effective as the air reaching it. Hose diameter and length directly affect airflow, pressure stability, and overall tool power.
Upgrading from undersized or excessively long hoses to properly matched 3/8″ or 1/2″ lines can immediately improve torque, speed, and efficiency across your entire pneumatic system.
Small changes in hose setup often result in noticeable gains in performance—without upgrading your compressor or tools.
