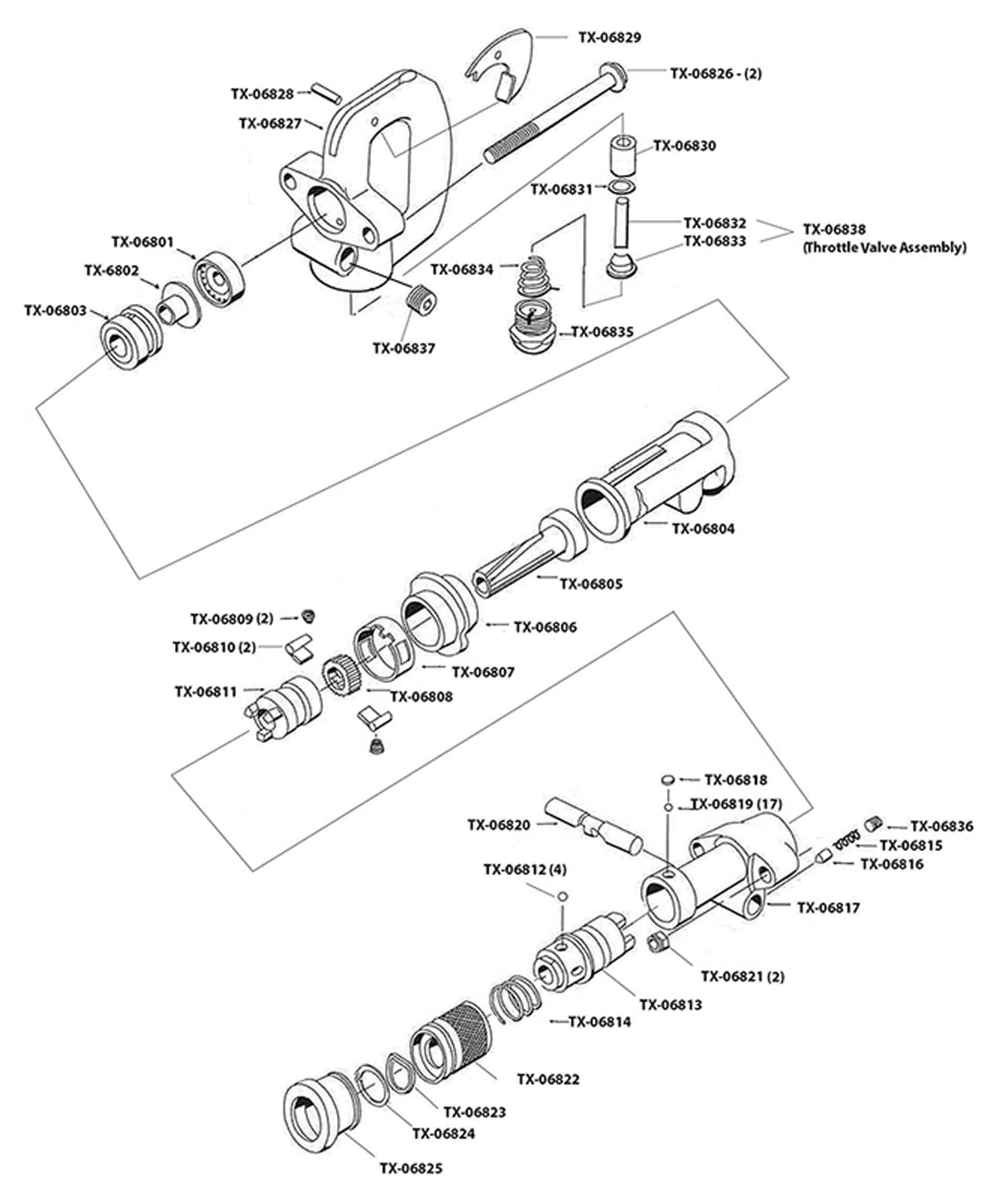

Texas Pneumatic TX-C9 Parts
| Quantity | Part Number | Name |
|---|---|---|
| 1 | TX-06808 | Ratchet Ring |
| 1 | TX-06809 | Pawl Spring (2) |
| 1 | TX-06810 | Pawl (2) |
| 1 | TX-06827 | Handle Bare |
| 1 | TX-06821 | Side Rod Nut |
| 1 | TX-06826 | Side Rod |
| 1 | TX-06815 | Plunger Spring |
| 1 | TX-06816 | Plunger |
| 1 | TX-06828 | Throttle Lever Pin |
| 1 | TX-06801 | Rear Valve Chest |
| 1 | TX-06802 | Valve |
| 1 | TX-06803 | Front Valve Chest |
| 1 | TX-06804 | Cylinder |
| 1 | TX-06805 | Piston |
| 1 | TX-06806 | Cylinder Bushing |
| 1 | TX-06807 | Shifter Sleeve |
| 1 | TX-06811 | Chuck Driver |
| 1 | TX-06812 | Chuck Driver Ball (4 Required) |
| 1 | TX-06813 | Chuck (Round) |
| 1 | TX-06814 | Chuck Spring |
| 1 | TX-06817 | Front Head |
| 1 | TX-06818 | Front Head Plug |
| 1 | TX-06819 | Front Head Ball |
| 1 | TX-06820 | Selector Pin (Hammer/Drill) |
| 1 | TX-06820L | Selector Pin Used W/ Muffler |
| 1 | TX-06822 | Retainer Sleeve |
| 1 | TX-06823 | Retainer Plate |
| 1 | TX-06824 | External Snap Ring |
| 1 | TX-06825 | Rubber Dust Sleeve |
| 1 | TX-06829 | Throttle Lever |
| 1 | TX-06830 | Throttle Valve Bushing |
| 1 | TX-06831 | Throttle Valve “O” Ring |
| 1 | TX-06832 | Throttle Push Pin |
| 1 | TX-06833 | Throttle Valve Spool |
| 1 | TX-06834 | Throttle Valve Spring |
| 1 | TX-06835 | Air Inlet Bushing |
| 1 | TX-06836 | Plunger Screw |
| 1 | TX-06837 | Oil Plug |
| 1 | TX-06840 | Muffler Asssembly |
| 1 | TX-06838 | Throttle Valve Assembly |

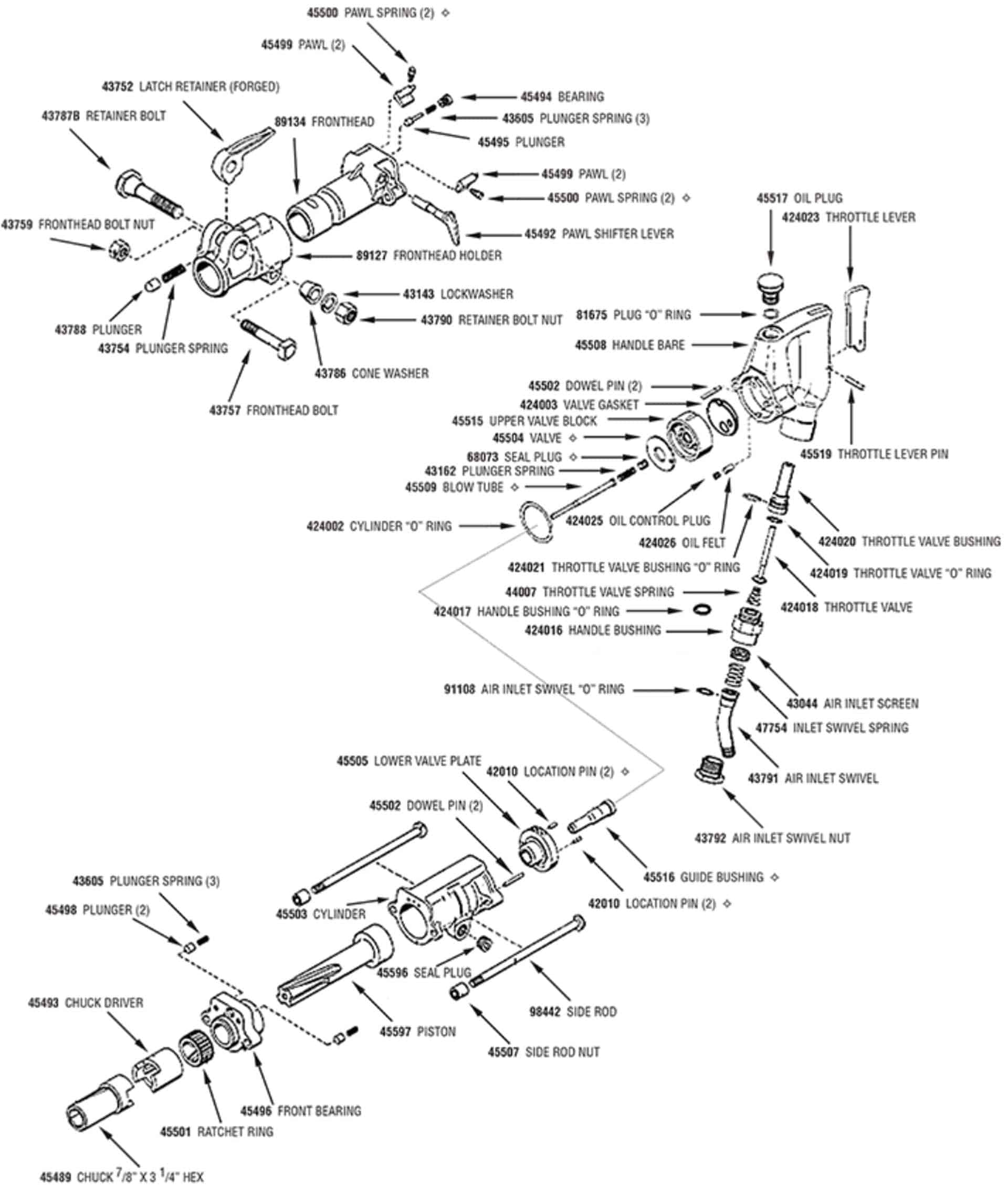

Texas Pneumatic TX-18D Parts
| Quantity | Part Number | Name |
|---|---|---|
| 1 | 43044 | Air Inlet Screen |
| 1 | 43143 | Lock Washer |
| 1 | 43162 | Plunger Spring |
| 1 | 43605 | Plunger Spring (3 Reqd) |
| 1 | 43752 | Latch Retainer |
| 1 | 43786 | Retainer Bolt Bushing (Thor 18) |
| 1 | 43788 | Retainer Plunger (Thor 18) |
| 1 | 43791 | Air Inlet Swivel & “O” Ring (Thor 18) |
| 1 | 43792 | Air Inlet Swivel Nut (Thor 18) |
| 1 | 44007 | Throttle Valve Spring |
| 1 | 45492 | Pawl Shifter Lever |
| 1 | 45499 | Pawl (2 Reqd) |
| 1 | 45500 | Pawl Spring (2 Reqd) |
| 1 | 45501 | Ratchet Ring |
| 1 | 45507 | Side Rod Nut |
| 1 | 45517 | Oil Plug |
| 1 | 47754 | Swivel Spring (Thor 18 Cd) |
| 1 | 68073 | Oil Control Plug |
| 1 | 81675 | Plug “O” Ring |
| 1 | 91108 | “O” Ring (Thor 18 Cd) |
| 1 | 424002 | Cylinder “O” Ring |
| 1 | 424003 | Valve Gasket |
| 1 | 424023 | Throttle Lever |
| 1 | 42010 | Location Pin |
| 1 | 43754 | Plunger Spring |
| 1 | 43757 | Fronthead Bolt Nut |
| 1 | 43759 | Fronthead Bolt Nut (Thor 18Cd) |
| 1 | 43790 | Retainer Bolt Nut (Thor 18Cd) |
| 1 | 45489 | Chuck (7/8″ x 3-1/4″ Hex) (TX18HD) |
| 1 | 45493 | Chuck Driver |
| 1 | 45494 | Bearing |
| 1 | 45495 | Plunger |
| 1 | 45496 | Front Bearing |
| 1 | 45498 | Plunger (2 Reqd) |
| 1 | 45502 | Dowel Pin |
| 1 | 45503 | Cylinder |
| 1 | 45504 | Valve |
| 1 | 45505 | Lower Valve Plate |
| 1 | 45508 | Handle Bare |
| 1 | 45509 | Blow Tube |
| 1 | 45515 | Upper Valve Plate |
| 1 | 45516 | Guide Bushing |
| 1 | 45519 | Throttle Lever Pin |
| 1 | 89127 | Fronthead Holder |
| 1 | 89134 | Fronthead |
| 1 | 98442 | Side Rod |
| 1 | 424016 | Handle Bushing (TX18Hd) |
| 1 | 424017 | Handle Bushing “O” Ring (TX18HD) |
| 1 | 424018 | Throttle Valve |
| 1 | 424019 | Throttle Valve “O” Ring |
| 1 | 424020 | Throttle Valve Bushing |
| 1 | 424021 | Throttle Valve Bushing “O” Ring |
| 1 | 424025 | Oil Control Plug |
| 1 | 424026 | Oil Felt |
| 1 | 43787B | Retainer Bolt |

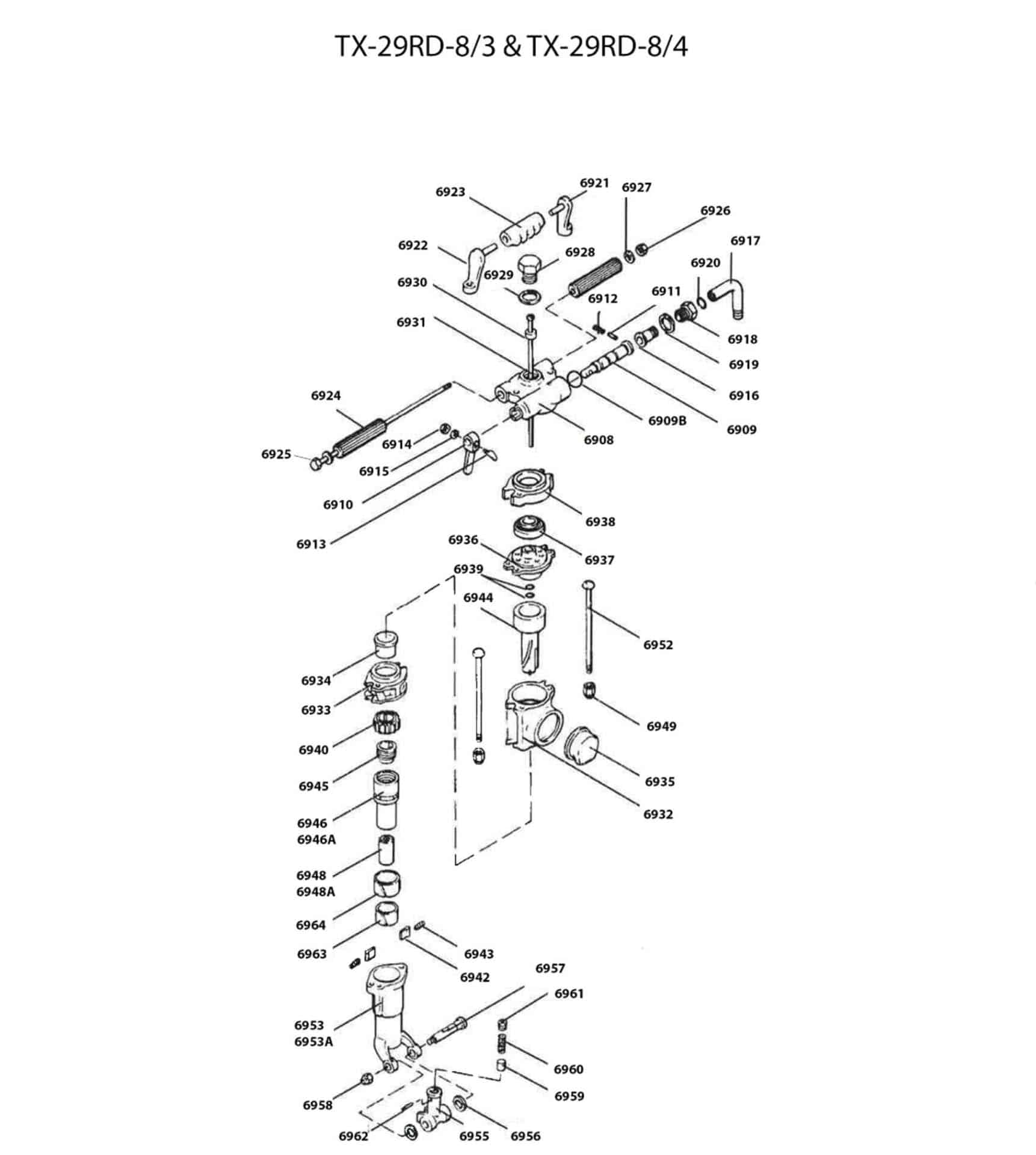

Texas Pneumatic TX-29RD-8/3 & TX-29RD-8/4 Parts
| Quantity | Part Number | Name |
|---|---|---|
| 1 | 6908 | Backhead |
| 1 | 6909 | Throttle Valve |
| 1 | 6909B | Throttle Valve “O” Ring |
| 1 | 6910 | Throttle Valve Handle |
| 1 | 6911 | Throttle Valve Plunger |
| 1 | 6912 | Throttle Valve Spring |
| 1 | 6913 | Throttle Valve Bolt |
| 1 | 6914 | Throttle Valve Bolt Nut |
| 1 | 6915 | Throttle Valve Washer |
| 1 | 6916 | Swivel Connection |
| 1 | 6917 | Air Connection Elbow |
| 1 | 6918 | Air Connection Nut |
| 1 | 6919 | Air Connection Washer |
| 1 | 6920 | “O” Ring |
| 1 | 6928 | Blow Tube Gland |
| 1 | 6929 | Tube Gland Gasket |
| 1 | 6921 | Left Grip Support |
| 1 | 6922 | Right Grip Support |
| 1 | 6923 | Center Grip |
| 1 | 6924 | Handle Grip |
| 1 | 6926 | Handle Bolt Nut |
| 1 | 6927 | Handle Bolt Washer |
| 1 | 6930 | Tube Gasket |
| 1 | 6931 | Blow Tube |
| 1 | 6925 | Handle Bolt |
| 1 | 6938 | Valve Chest |
| 1 | 6937 | Valve |
| 1 | 6936 | Valve Cover |
| 1 | 6939 | “O” Ring |
| 1 | 6935 | Exhaust Deflector |
| 1 | 6932 | Cylinder |
| 1 | 6934 | Front Washer Bushing |
| 1 | 6933 | Front Washer |
| 1 | 6944 | Piston |
| 1 | 6949 | Side Rod Nut |
| 1 | 6940 | Ratchet Ring |
| 1 | 6945 | Sleeve Nut |
| 1 | 6946 | Rotation Sleeve 7/8″ X 3-1/4″ |
| 1 | 6946A | Rotation Sleeve 7/8″ X 4-1/4″ |
| 1 | 6948 | Sleeve Bushing 7/8″ X 3-1/4″ |
| 1 | 6948A | Sleeve Bushing 7/8″ X 4-1/4″ |
| 1 | 6943 | Pawl Spring |
| 1 | 6942 | Rotation Pawl |
| 1 | 6952 | Side Rod Bolt |
| 1 | 6953 | Fronthead 7/8″ X 3-1/4″ |
| 1 | 6953A | Fronthead 7/8″ X 4-1/4″ |
| 1 | 6959 | Steel Holder Plunger |
| 1 | 6957 | Steel Holder Bolt |
| 1 | 6956 | Steel Holder Packing |
| 1 | 6955 | Steel Holder |
| 1 | 6958 | Steel Holder Nut |
| 1 | 6964 | Fronthead Liner |
| 1 | 6963 | Fronthead Liner |
| 1 | 6962 | Steel Holder Pin |
| 1 | 6961 | Steel Holder Screw |
| 1 | 6960 | Steel Holder Spring |
| 1 | 6928W | Water Tube Gland |
| 1 | 6931W | Water Tube |
| 1 | 7334 | Universal Wet Kit Includes Swivel, Hose Connection And Valve |

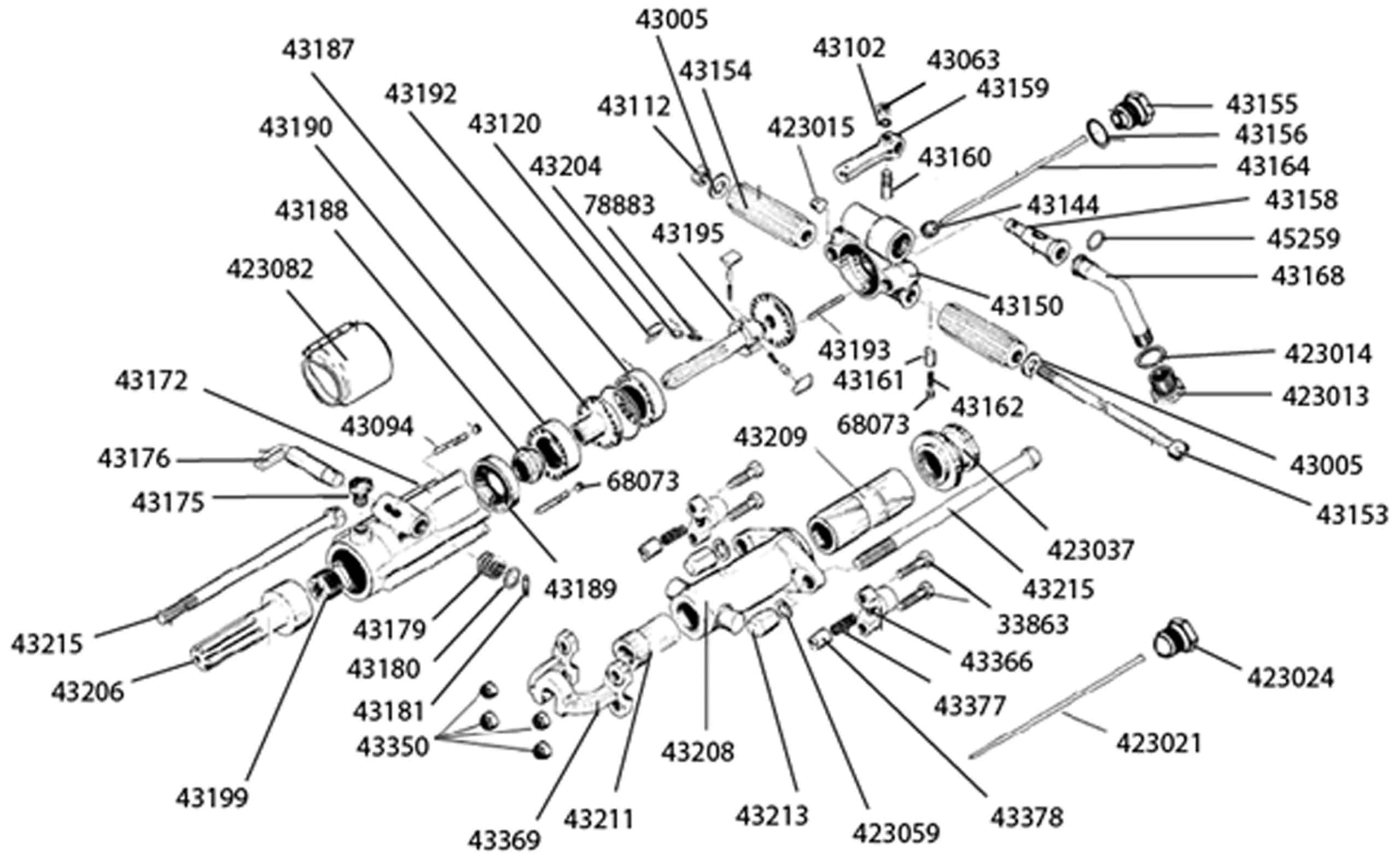

Texas Pneumatic TX60RD-1, TX60RD-8 & TX60RD-8-3 Parts
| Quantity | Part Number | Name |
|---|---|---|
| 1 | 33863 | Steel Retainer Bolt (4 Reqd) |
| 1 | 43005 | Handle Bolt Washer (2 Reqd) |
| 1 | 43102 | Throttle Valve Handle Nut |
| 1 | 43112 | Handle Bolt Nut |
| 1 | 43120 | Pawl (3 Reqd) |
| 1 | 43144 | Blow Tube Rubber Seal |
| 1 | 43153 | Handle Bolt |
| 1 | 43154 | Handle Grip (2 Reqd) |
| 1 | 43155 | Blow Tube Gland |
| 1 | 43156 | Blow Tube Gasket |
| 1 | 43159 | Throttle Valve Handle |
| 1 | 43160 | Throttle Valve Handle Bolt |
| 1 | 43161 | Detent Plunger |
| 1 | 43162 | Plunger Spring |
| 1 | 43164 | Blow Tube |
| 1 | 43175 | Oil Plug (Thor 23 PB) |
| 1 | 43176 | Exhaust Valve |
| 1 | 43179 | Exhaust Valve Spring |
| 1 | 43180 | Exhaust Valve Washer |
| 1 | 43181 | Exhaust Valve Pin |
| 1 | 43188 | Automatic Valve |
| 1 | 43193 | Valve Dowel |
| 1 | 43199 | Brass Rifle Nut |
| 1 | 43204 | Pawl Plunger (3 Reqd) |
| 1 | 43206 | Piston |
| 1 | 43209 | Chuck Driver |
| 1 | 43210 | Chuck Bushing (7/8″ X 3-1/4″) |
| 1 | 43211 | Chuck Bushing (1″ X 4-1/4″) |
| 1 | 43213 | Side Rod Bolt Nut (2 Reqd) |
| 1 | 43215 | Side Rod (2 Reqd) |
| 1 | 43350 | Bolt Nut |
| 1 | 43366 | Steel Retainer Cap (2 Reqd) |
| 1 | 43369 | Steel Retainer (1 X 4 X 1/4″) |
| 1 | 43371 | Steel Retainer (7/8″ X 3-1/4″) |
| 1 | 43378 | Steel Retainer Plunger (2 Reqd) |
| 1 | 43618 | Chuck Bushing (7/8″ X 4-1/4″) |
| 1 | 45259 | “O” Ring |
| 1 | 68073 | Oil Control Plug |
| 1 | 78883 | Pawl Spring (3 Reqd) |
| 1 | 423037 | Front Washer Bushing |
| 1 | 43063 | Throttle Valve Handle Washer (TX60Rd) |
| 1 | 43150 | Backhead With Bushing (Wet) |
| 1 | 43158 | Throttle Valve W/ “O” Ring |
| 1 | 43168 | Air Inlet Swivel |
| 1 | 43187 | Valve Guide |
| 1 | 43189 | Front Valve Chest |
| 1 | 43190 | Rear Valve Chest (Thor 18CD) |
| 1 | 43192 | Ratchet Ring |
| 1 | 43195 | Rifle Bar |
| 1 | 43208 | Fronthead |
| 1 | 43377 | Retainer Spring (2 Reqd) |
| 1 | 423013 | Swivel Nut |
| 1 | 423014 | Swivel Nut “O” Ring |
| 1 | 423021 | Water Tube |
| 1 | 423024 | Water Tube Gland |
| 1 | 423059 | Side Rod Lock Washer (2) |
| 1 | 43172 | Cylinder |
| 1 | 423082 | Muffler |
Texas Pneumatic Rock Drill Parts
Keep your drilling equipment operating at peak performance with OEM-quality replacement parts for Texas Pneumatic rock drills. Designed to handle continuous high-impact rock fragmentation and concrete drilling, our inventory covers high-wear components for classic and modern Texas Pneumatic models, including the TX-C9, TX-18D, TX-29RD, and TX60RD series.
Looking for a new tool instead? If your current drill is beyond economical repair, browse complete Texas Pneumatic rock drill configurations and technical specifications to get back on the job quickly.
Parts Breakdown by Equipment Component
Select your component category below to find the replacement parts needed for maintenance, repair, or complete overhaul.
Fronthead & Retainer Assembly
The fronthead handles constant rotation, vibration, and tool-steel impact. Replacing worn rotation components and liners early helps prevent damage to internal assemblies.
- Steel Holders & Retainers: Heavy-duty holders, plungers, and pins designed for secure steel retention and fast bit changes.
- Chuck & Sleeve Bushings: Precision bushings available in common sizes including 7/8″ x 3-1/4″, 7/8″ x 4-1/4″, and 1″ x 4-1/4″.
- Rotation Sleeves & Chuck Drivers: Transfer rotational power smoothly while maintaining proper alignment and drilling performance.
Cylinder, Piston & Rotation Components
Maintain maximum impact power and reliable rotation by keeping internal pneumatic components properly sealed and maintained.
- Pistons: Heat-treated alloy steel pistons designed for high-impact operation and long service life.
- Cylinders: Durable replacement cylinders optimized for standard compressed air operation.
- Rifle Bars & Rifle Nuts: High-wear components that control the drill’s automatic rotation mechanism.
- Ratchet Rings & Pawls: Critical rotation components that maintain proper drilling timing.
Valve Chest & Throttle Mechanism
Restore proper drilling speed, impact performance, and operator control by replacing worn valve train components.
- Automatic Valve Assemblies: Valve chests, valve plates, and valve discs designed for consistent stroke timing.
- Throttle Valves & Push Pins: Restore smooth blow control and responsive operation.
- Air/Water Flush Components: Blow tubes, water tubes, and glands designed to clear debris and keep drilling efficient.
Handles, Grips & Side Rods
Maintain operator control and structural integrity under demanding drilling conditions.
- Grip Supports & Handles: Replacement handle assemblies and grips designed to reduce vibration and improve handling.
- Side Rods & Nuts: High-strength components that keep the drill body properly aligned during operation.
Maintenance Tips for Longer Rock Drill Life
Pneumatic rock drills require clean, lubricated air to maintain maximum performance and prevent premature wear. Keep inline oilers filled with proper air tool oil and ensure lubrication is adjusted correctly during operation.
Operating a rock drill without proper lubrication can damage cylinder walls, wear rotation components, and lead to expensive downtime. Always inspect air and water flush lines before drilling to prevent debris buildup and reduced performance.
Need a Complete Texas Pneumatic Rock Drill?
If repairing your existing drill is no longer cost-effective, we supply professional-grade Texas Pneumatic tools for construction, quarrying, and industrial applications.
- TX-C9 Utility Hammer Drill: Compact, lightweight drill designed for portability and close-quarters drilling.

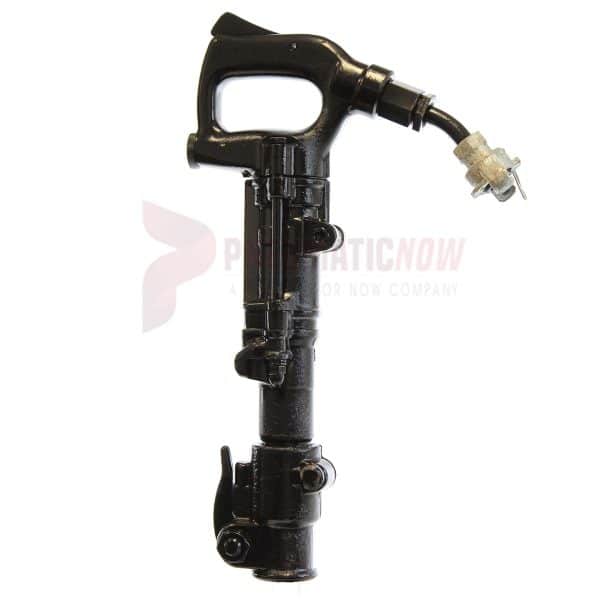

- TX-18D Series: 18 lb class drill suited for utility and light construction applications.
- TX-29RD Series: Versatile mid-weight drill for general construction and drilling work.

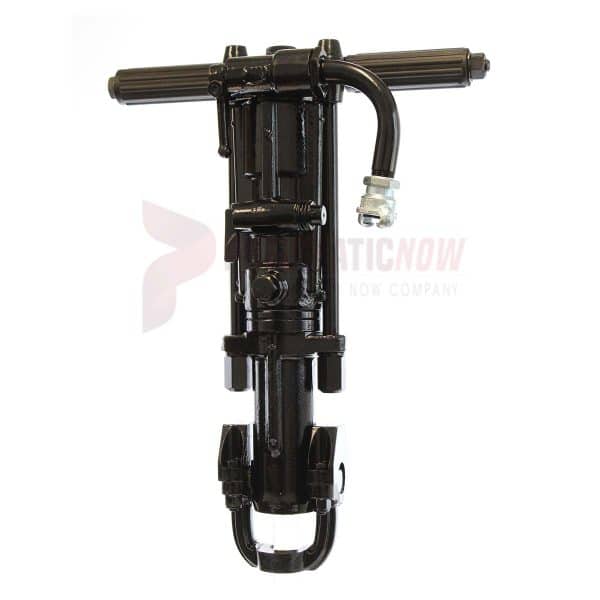

- TX60RD Series: Heavy-duty drill built for demanding quarry, tunneling, and deep drilling applications.
