Texas Pneumatic Rivet Busters Parts
Texas Pneumatic Rivet Busters Parts
Texas Pneumatic Rivet Buster Parts tables are listed as is and implies no warranty or guarantee of your particular unit. Always check with the manufacturer.

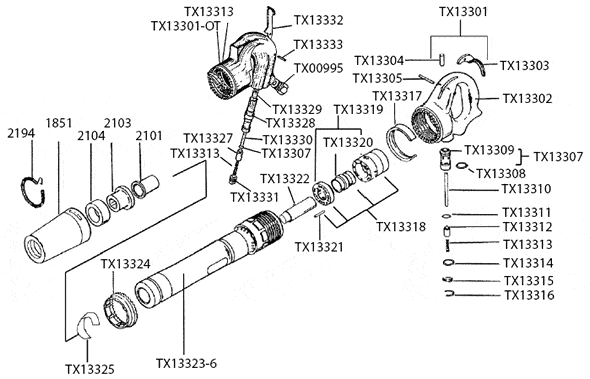

Texas Pneumatic TX-133-8RB, TX-133-6RB & TX-133-11RB Parts
| Quantity | Part Number | Name |
|---|---|---|
| 1 | 1851 | RETAINER |
| 1 | 2101 | Jumbo RB Upper Sleeve Used with Standard Bore & 2000 Tool |
| 1 | 2104 | Jumbo RB Rubber Bumper-Black (standard duty) |
| 1 | 2194 | Lock Spring |
| 1 | TX-13301 | “D” Handle Complete for Rivet Buster |
| 1 | TX-13301-OT | Outside Trigger Handle – Complete |
| 1 | TX-13302 | Bare Handle |
| 1 | TX-13303 | Lever |
| 1 | TX-13304 | Throttle Valve Pin Bushing |
| 1 | TX-13305 | Lever Pin |
| 1 | TX-13307 | Throttle Valve Bushing Assembly |
| 1 | TX-13308 | Throttle Valve Bushing “O” Ring |
| 1 | TX-13309 | Throttle Valve Bushing |
| 1 | TX-13310 | Throttle Valve Pin |
| 1 | TX-13312 | Throttle Valve W/ “O” Ring |
| 1 | TX-13315 | Retainer Cap |
| 1 | TX-13316 | Retainer Clip |
| 1 | TX-13317 | Lock Ring Cover |
| 1 | TX-13318 | Valve Assembly Complete |
| 1 | TX-13319 | Front & Rear Valve (Set) |
| 1 | TX-13320 | Main Valve |
| 1 | TX-13321 | Valve Pin |
| 1 | TX-13322 | Piston (For 6″ & 8″ Stroke) |
| 1 | TX-13322-11 | Piston (For 11″ Stroke) |
| 1 | TX-13323-6 | 6″ Stroke Barrel |
| 1 | TX-13323-8 | 8″ Stroke Barrel |
| 1 | TX-13324 | Lock Ring |
| 1 | TX-13325 | Exhaust Deflector |
| 1 | 12103-15 | Jumbo RB Lower Sleeve Used with 1500 Tool |
| 1 | 12103-15S | Jumbo RB Lower Sleeve-Split Used with 1500 Tool |
| 1 | 12103S | Jumbo RB Lower Sleeve-Split Used with 2000 Tool |
| 1 | TX-00995 | 1/2″ MPT x 1/2″ FPT Inlet Bushing |
| 1 | 12103 | Jumbo RB Lower Sleeve Used with 2000 Tool |
| 1 | 174542 | Jumbo RB Rubber Bumper (Gray Heavy Duty) |
| 1 | 174571 | Jumbo RB Red Urethane Bumper (91 Durometers) |
| 1 | 174602 | Jumbo RB Orange Urethane Bumper (86 Durometers) – Heavy Duty |
| 1 | TX-13311 | Throttle Valve “O” Ring |
| 1 | TX-13313 | Throttle Valve Spring |
| 1 | TX-13314 | Throttle Valve Bushing “O” Ring |
| 1 | TX-13327 | Throttle Valve W/ “O” Ring |
| 1 | TX-13328 | Throttle Tube |
| 1 | TX-13329 | Bushing |
| 1 | TX-13330 | Throttle Push Pin |
| 1 | TX-13331-1 | Throttle Valve Plug |
| 1 | TX-13332 | Throttle Lever |
| 1 | TX-13333 | Throttle Lever Pin |
| 1 | TX-13306 | 1/2″ MPT X 3/8″ FPT Inlet Bushing |
| 1 | TX-13323-11 | 11″ Stroke Barrel |
Texas Pneumatic Rivet Buster Parts
Keep your heavy-duty demolition equipment operating at peak performance with OEM-quality replacement parts for Texas Pneumatic Rivet Busters. Engineered to deliver high-impact energy comparable to a 60 lb. paving breaker without the added bulk, our inventory covers high-wear components for all classic and modern Texas Pneumatic models—including our 6″, 8″, and 11″ stroke configurations.
💡 Looking for a new tool instead? If your current hammer is beyond economic repair, you can browse configurations, view complete technical specifications, and purchase new Texas Pneumatic Rivet Busters right here to get back on the job site immediately.
🛠️ Parts Breakdown by Equipment Component
Select your component category below to locate the precise part number needed for your scheduled maintenance or overhaul.
Retainer & Fronthead Assembly
The fronthead bears the brunt of continuous vibration and tool-steel impact. Replace worn sleeves and bumpers early to avoid internal damage to the piston.
- Retainer Caps & Clips: Heavy-duty setup for secure and positive tool bit retention.
- Upper & Lower Sleeves: Available in standard and split options for Jumbo .866″ shanks.
- Rubber & Urethane Bumpers: Absorbs intensive kickback during heavy rivet cutting or concrete breaking.
Barrel, Cylinder & Piston Components
Maintain maximum hard-hitting impact energy by ensuring a flawless pneumatic seal inside the polished steel barrel.
- Pistons: Precision-ground alloy steel beaters built for extreme durability.
- Polished Steel Barrels: Heat-treated barrels featuring a built-in safety bridge for integrated piston retention. Available in 6″, 8″, and 11″ stroke sizes.
- Lock Rings & Covers: Crucial locking mechanisms that secure the barrel assembly to the handle.
Handle & Throttle Mechanism
Fix sluggish operation, air leaks, or startup failures with responsive throttle train components.
- Configurable Handle Assembly: Replacement options for Outside Trigger, Inside Trigger, or classic T-Handle setups.
- Steel Throttle Valves & Pins: Restores sensitive, variable-speed control to the operator’s grip.
- Air Inlet Bushings: High-tolerance 1/2″ MPT x 1/2″ FPT or 1/2″ MPT x 3/8″ FPT inlet bushings to safeguard incoming airflow.
Quick-Reference Maintenance Chart
| Component Family | High-Wear Parts Included | Recommended Inspection Interval | Sign of Failure |
|---|---|---|---|
| Air Inlet Kit | Inlet Bushings, Throttle Valve O-Rings | Weekly | Loss of tool BPM / sluggish stroke |
| Throttle Kit | Throttle Valve, Spring, Push Pin, Bushing | Every 3 Months | Air leaking from handle when trigger is released |
| Retainer/Sleeve Kit | Lower/Upper Sleeves, Retainer Clip, Bumper | Every 3 Months | Excessive play in the Jumbo chisel shank |
| Tune-Up Kit | Lock Rings, Valve Seals, Push Pins | Every 6 Months | Low impact power or dropping below standard 90 PSI performance |
Pro-Tip: Avoid Unscheduled Downtime
Pneumatic rivet busters require clean, lubricated air to maximize lifespan. Always ensure your included filter/lubricator hose whip (TX-8HW-F-1/2) is filled daily with premium air tool oil. Operating your tool completely dry will score the heat-treated barrel and cause premature failure of the internal piston mechanism.
Need a Complete Replacement Rivet Buster?
Don’t let missing components halt production on your project site. If a complete overhaul isn’t cost-effective, we supply the full lineup of professional-grade pneumatic rivet busters, shipped directly with a filter/lubricator hose whip, a 12” moil point, and a flat chisel.

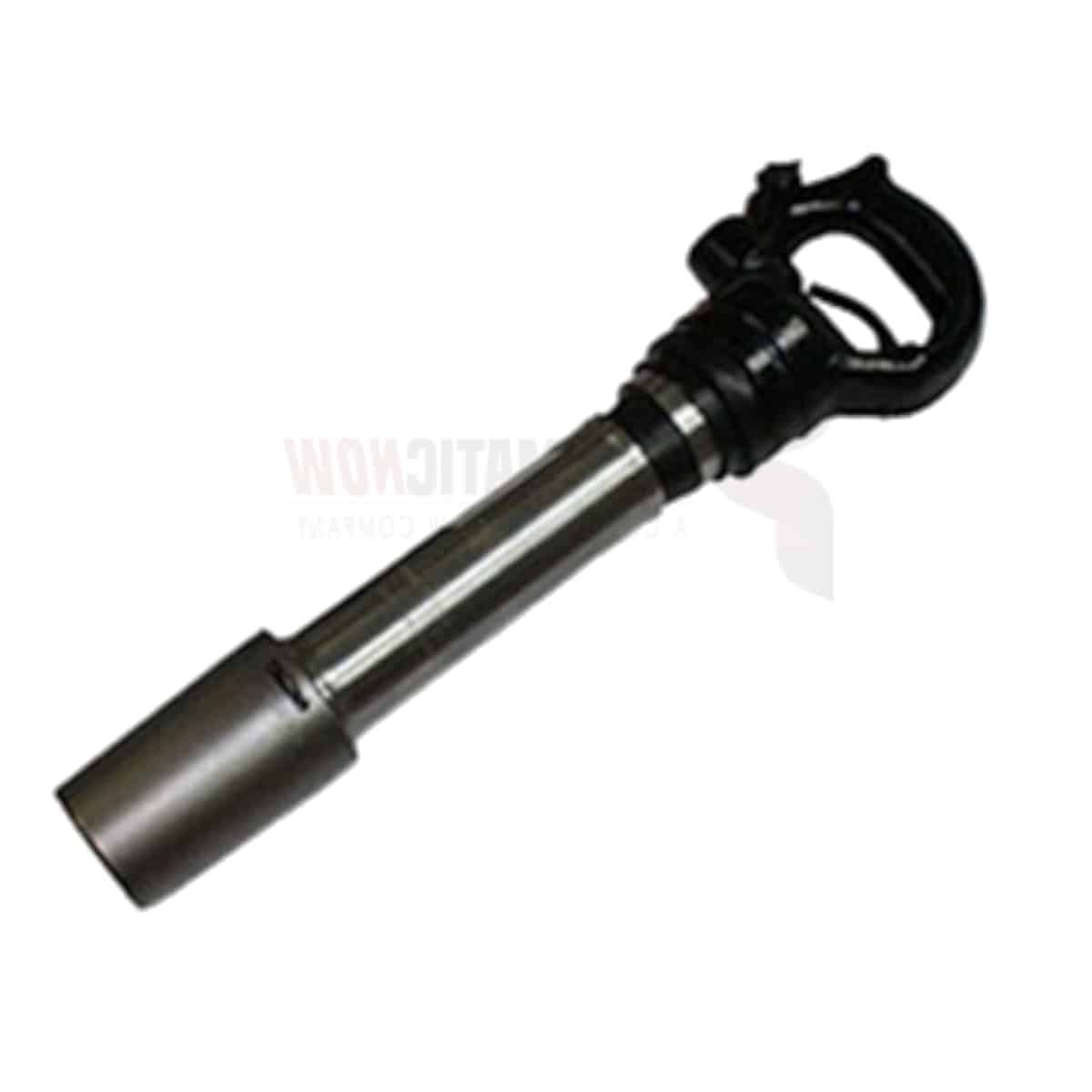

- Texas Pneumatic Tools 6-11 in Rivet Buster (Standard/Inside Trigger): The classic industrial standard for smooth control inside confined spaces and mixing tanks.

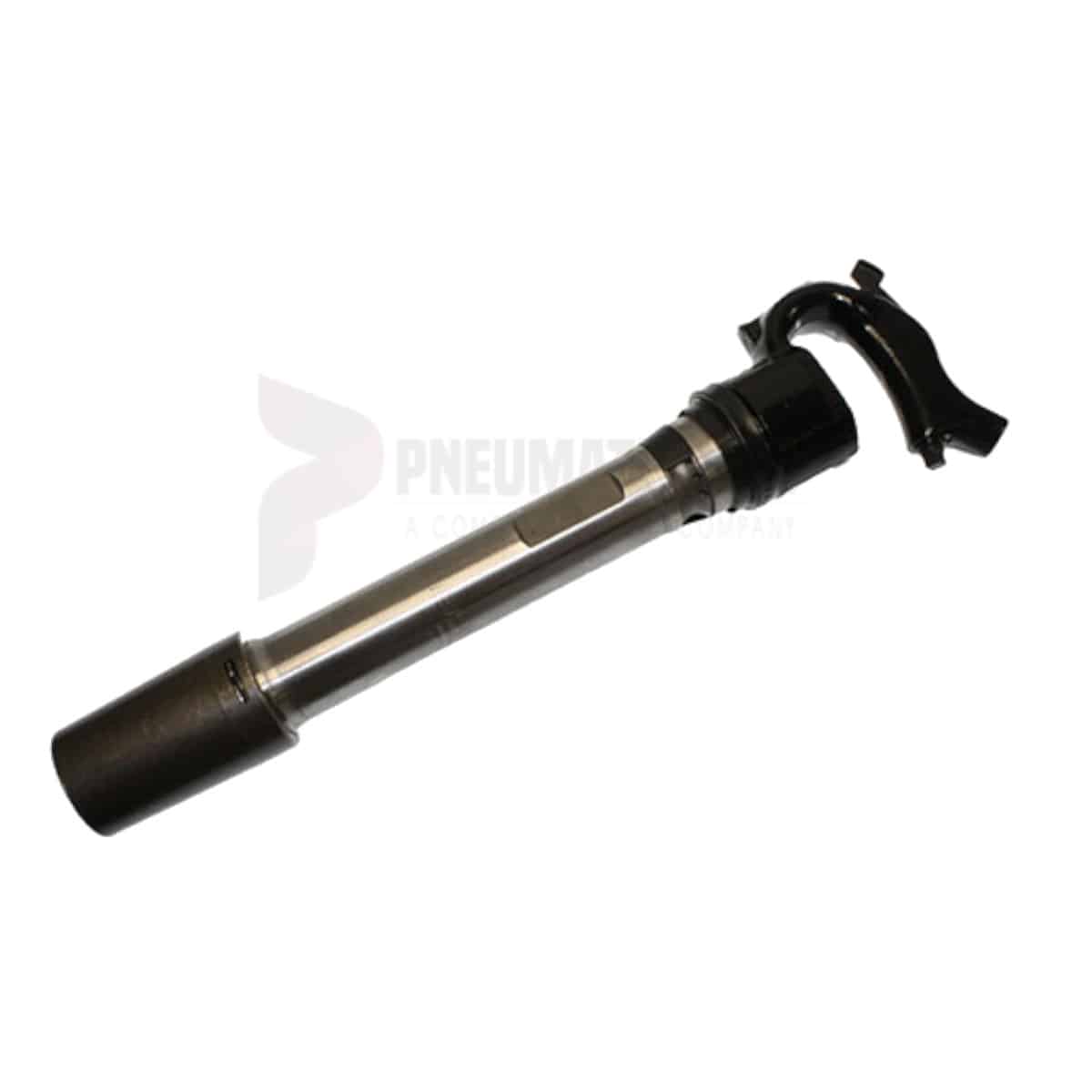

- Texas Pneumatic Tools 6-11 in Outside Trigger Rivet Buster: Features an ergonomic outside trigger optimized for fast manipulation and safety in high-production environments.
- Texas Pneumatic Tools 6-11in T-Handle Rivet Buster: Designed for maximum downward pressure during heavy bridge deck work and flat concrete demolition.
