Texas Pneumatic Chipping Hammers Parts

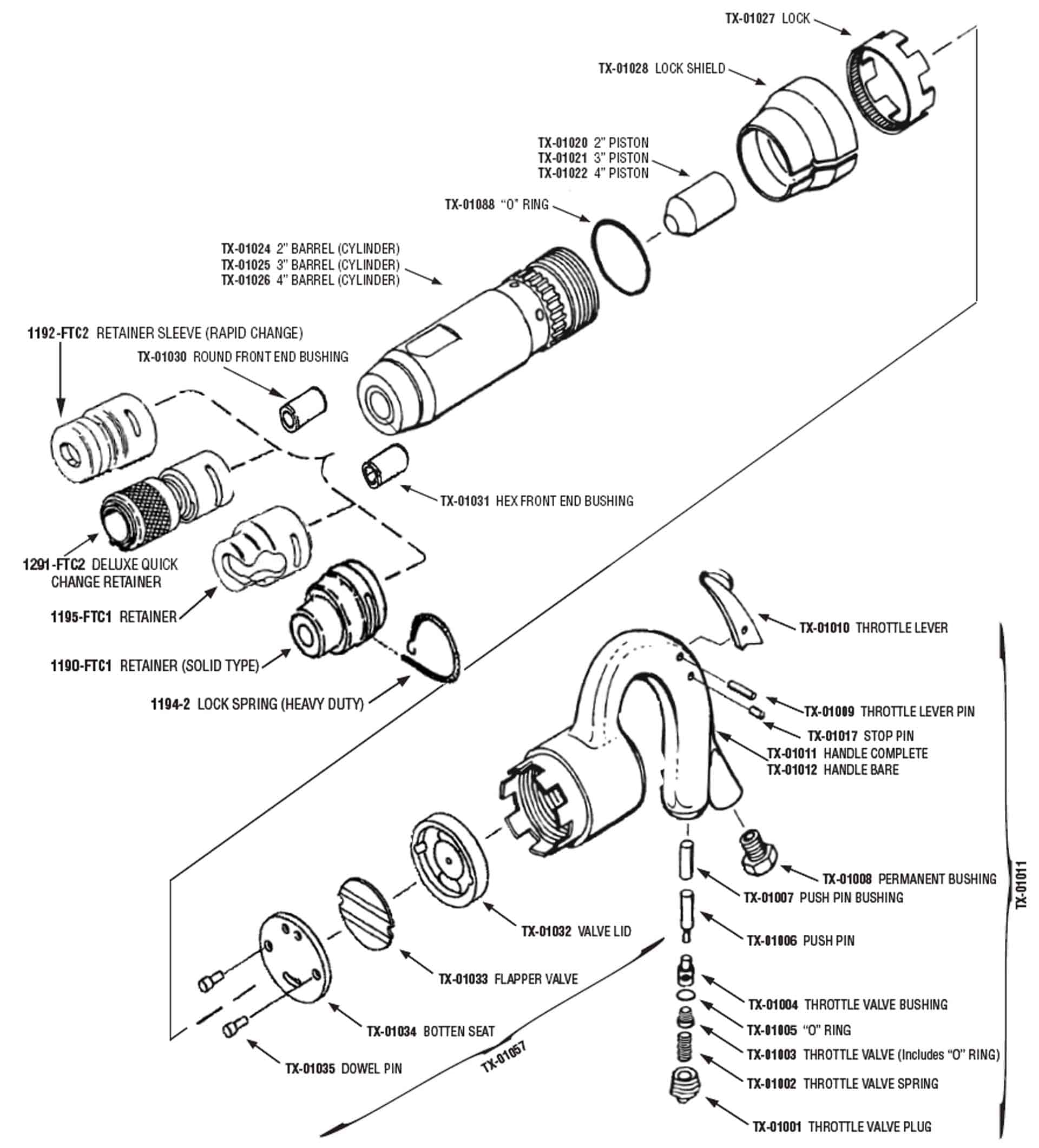

Texas Pneumatic Tools- Chipping Hammers
| Part Number | Quantity | Description |
|---|---|---|
| TX4B502 | 1 | 3″ Stroke Barrel |
| TX4B503 | 1 | 4″ Stroke Barrel |
| TX4B504-S | 1 | 7/8″-24 X 3/4″-14 Nps Inlet Bushing (Sullair Type) |
| TX4B505 | 1 | 4″ Stroke Piston |
| TX4B506 | 1 | 1/2″ FPT X 1-1/16″ Inlet Bushing |
| TX-4HW | 1 | 1/2″ ID x 6′ HWA w/ TX-0L & 7/8″- 24 Thread Bent Swivel (TX-01087) |
| TX4BPIN | 1 | Throttle Lever Pin |
| TX4B431 | 1 | Throttle Valve “O” Ring |
| TX4B480 | 1 | Valve Seat Bumper |
| TX4B481 | 1 | Valve Locator Pin (2 Per Tool) |
| TX4B481-NS | 1 | Valve Locator Pin – New Style (2 Per Tool) |
| TX4B482 | 1 | Valve Seat |
| TX4B484 | 1 | Handle Bare |
| TX4B484C | 1 | Handle Complete |
| TX4B485-GR 8 | 1 | Handle Bolts |
| TX4B486 | 1 | 4-Bolt Trigger |
| TX4B487 | 1 | Throttle Valve Stem Bushing |
| TX4B488 | 1 | Throttle Valve W/ “O” Ring |
| TX4B489 | 1 | Throttle Valve Spring |
| TX4B490 | 1 | “O” Ring |
| TX4B493 | 1 | Absorber Ring |
| TX4B494 | 1 | Barrel Flange |
| TX4B495 | 1 | Vibration Spacer |
| TX4B496 | 1 | Steel Handle Bolt Spacer |
| TX4B497 | 1 | Nyloc Handle Bolt Nut |
| TX4B498 | 1 | 2″ Stroke Barrel |
| TX4B499NS | 1 | Exhaust Deflector (New Style) |
| TX4B500 | 1 | 2″ Stroke Piston |
| TX4B501 | 1 | 3″ Stroke Piston |
| TX4BPLUG | 1 | Handle Plug |
| 1190-TPT1 | 1 | Retainer (Solid Type) for Oval Collar Chisels |
| 1192-SUL2 | 1 | Rapid Change Retainer for Oval Collar Chisels (Sullair MCH 2-4 Chipping Hammer) |
| 1194-2 | 1 | Lock Spring – Heavy Duty (Chipping Hammer) |
Texas Pneumatic Tools- Chipping Hammers
👉 Click Here to Purchase Genuine Texas Pneumatic Chipping Hammers
The Chipping Hammer is a durable, high-performance hand tool designed for removing welding slag, spatter, and scale from metal surfaces. Built to withstand tough industrial conditions, this hammer is essential for welders, fabricators, and construction professionals who demand precision and reliability.
Benefits:
Forged Steel Head: Crafted from high-carbon steel for exceptional strength and long-lasting durability.
Dual-Head Design: Features a flat chisel end for scaling and a pointed tip for cleaning tight areas.
Shock-Absorbing Handle: Spring or rubber grip handle minimizes vibration and hand fatigue during extended use.
Corrosion-Resistant Finish: Black oxide or powder-coated surface ensures long-term protection against rust.
Lightweight & Balanced: Ergonomic design for superior control and reduced strain.
Applications:
Ideal for:
Removing slag and spatter after welding
Cleaning metal surfaces before finishing
Fabrication, shipbuilding, and construction work
Key Features 2″, 3″, or 4″ Stroke Chipping Hammer w/ Round Bushing & Forged Handle
Specifications:
- Weight = 16.1 lbs.
- Length = 15.75″
- Air Consumed = 32 CFM
- Bore = 1-1/8″
- Stroke = 2″
- BPM = 2100
- Minimum Hose Size = 1/2″
| MODEL # | WEIGHT | LENGTH | CFM CONSUMED | BORE | STROKE | BPM | MINIMUM HOSE SIZE |
|---|---|---|---|---|---|---|---|
| TX-CH2-R-H | 16 lbs. | 15-3/4” | 32 CFM | 1-1/8” | 2” | 2100 | 1/2” |
| 8.2 kg | 368 mm | 935 l/min | 29 mm | 51 mm | 13 mm | ||
| TX-CH3-R-H | 17 lbs. | 17” | 33 CFM | 1-1/8” | 3” | 1650 | 1/2” |
| 8.6 kg | 394 mm | 963 l/min | 29 mm | 76 mm | 13 mm | ||
| TX-CH4-R-H | 18 lbs. | 18-1/2” | 34 CFM | 1-1/8” | 4” | 1375 | 1/2” |
| 9.1 kg | 419 mm | 991 l/min | 29 mm | 102 mm | 13 mm |
Don’t let missing components halt production on your project site. If a complete overhaul isn’t cost-effective, we supply the full lineup of professional-grade pneumatic hammers.
- TX-CH2-R: 2″ Stroke w/ Round Bushing & Forged Handle
- TX-CH3-H: 3″ Stroke w/ Hex Bushing & Forged Handle
- TX-CH4-R: 4″ Stroke w/ Round Bushing & Forged Handle
