How to Safely Cross-Reference Pneumatic Components (Without Voiding Warranties)

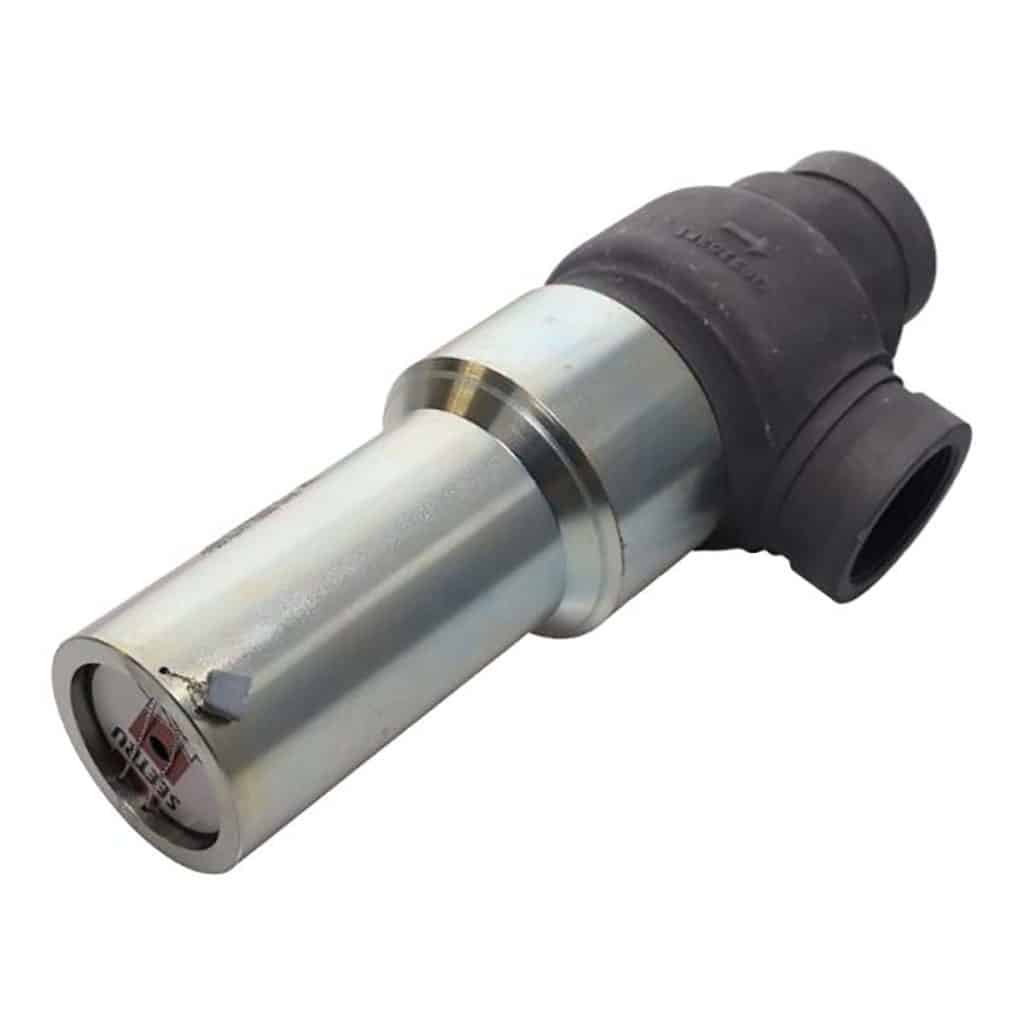

It is a scenario every plant manager dreads: a critical machine goes down, you trace the fault to a failed directional control valve or cylinder, and you pull the part number. You call the Original Equipment Manufacturer (OEM), only to hear the worst words in industrial maintenance:
“That part is factory backordered. Lead time is 12 weeks.”
When production lines are down, waiting three months isn’t an option. Naturally, your first instinct is to find an alternative brand that is sitting on a shelf somewhere, ready to ship today.
But swapping out an OEM component for a different brand can feel like a gamble. Will it fit? Will it provide the same speed? Will it void your machine’s factory warranty?
You can cross-reference pneumatic parts safely and confidently without risking your machine’s integrity. It all comes down to matching four critical specifications. Here is your step-by-step guide to pneumatic component cross-matching.
1. Match the Flow Coefficient (Cv) — Not Just Port Size
The biggest mistake technicians make when trying to interchange industrial valves is assuming that if the port sizes match, the valves are identical.
Warning: Just because two valves both have 1/4″ NPT ports does not mean they flow the same amount of air.
Internal casting geometries and spool designs vary wildly between manufacturers. To ensure your machine cycles at the exact speed the OEM intended, you must look at the Flow Coefficient (Cv). The Cv rating measures how much air can pass through the valve at a given pressure drop.
- If your replacement valve has a lower Cv, your cylinders will move slower, throwing off machine timing.
- If the Cv is significantly higher, it might slam your actuators too hard, causing premature mechanical wear.
Always find the Cv rating in the original part’s datasheet and ensure your alternative match is within ±5% to 10% of that value.
2. Check the Mounting Footprint (ISO Standards vs. Proprietary)
If you are replacing a standalone inline valve or basic cylinder, mounting is usually straightforward. However, if you are swapping a valve that sits on a multi-station manifold stack, things get tricky.
- ISO Standards: Look to see if the OEM part adheres to an international standard like ISO 5599/1 or ISO 15407-1 for valves, or ISO 15552 for cylinders. If it does, you are in luck. Any manufacturer’s ISO-compliant component will bolt directly onto that standard footprint.
- Proprietary Designs: Many OEMs design custom, proprietary footprints specifically to lock you into their ecosystem. In these cases, a direct cross-reference might require an intermediate sub-base adapter, or you may need to replace the entire manifold block with an in-stock alternative.
3. Verify Thread Standards and Port Sizes
Pneumatic plumbing isn’t universal. Thread mismatch is a quick way to strip a brand-new manifold or cause permanent leaks. When cross-matching, ensure you know the exact thread form:
| Thread Type | Description | Regional Commonality |
|---|---|---|
| NPT (National Pipe Tapered) | Tapered thread that seals via metal-to-metal contact. | Standard in North America |
| BSPP / G (British Standard Pipe Parallel) | Parallel thread that relies on an O-ring or washer to seal. | Standard in Europe & Asia |
| BSPT / R (British Standard Pipe Tapered) | Tapered thread popular in international systems. | Common in Asian machinery |
Never try to force an NPT fitting into a G port (BSPP); even if the pitch feels close, it will destroy the threads under pressure.
4. Don’t Forget Electrical and Environmental Ratings
If you are interchanging solenoid valves, matching the plumbing is only half the battle. You also have to satisfy the control system and the operating environment:
- Voltage & Wattage: Ensure the coil voltage matches (e.g., 24VDC, 120VAC) and that the power consumption (wattage) doesn’t exceed what your PLC output card can handle.
- Electrical Connection: Is it a DIN connector, M12 pin connection, or flying leads?
- IP/NEMA Ratings: If the machine gets washed down with high-pressure water or operates in a dusty sawmill, your replacement component must match or exceed the original IP65 or IP67 ingress protection rating.
What About the Machine Warranty?
Technicians often worry that using non-OEM parts will void the entire machine’s warranty. In many regions, antitrust laws (such as the Magnuson-Moss Warranty Act in the US) protect consumers. An OEM cannot legally void a machine’s warranty simply because you used a third-party replacement part—unless they can prove that the specific aftermarket part caused the failure.
By precisely matching the Cv rating, pressure limits, and electrical specs using the steps above, you eliminate the risk of a third-party part causing a system malfunction.
Summary
- Look past port sizes: Always match the internal flow coefficient (Cv) to prevent your machinery from cycling too fast or too slow.
- Check for ISO compliance: ISO-standardized cylinders and valves can be interchanged seamlessly across different brands.
- Verify thread geometry: Ensure you aren’t mixing NPT, BSPP, or BSPT threads, which causes permanent thread damage and leaks.
- Confirm electrical specs: Double-check solenoid voltage, connection types, and environmental IP ratings to protect your PLC.
